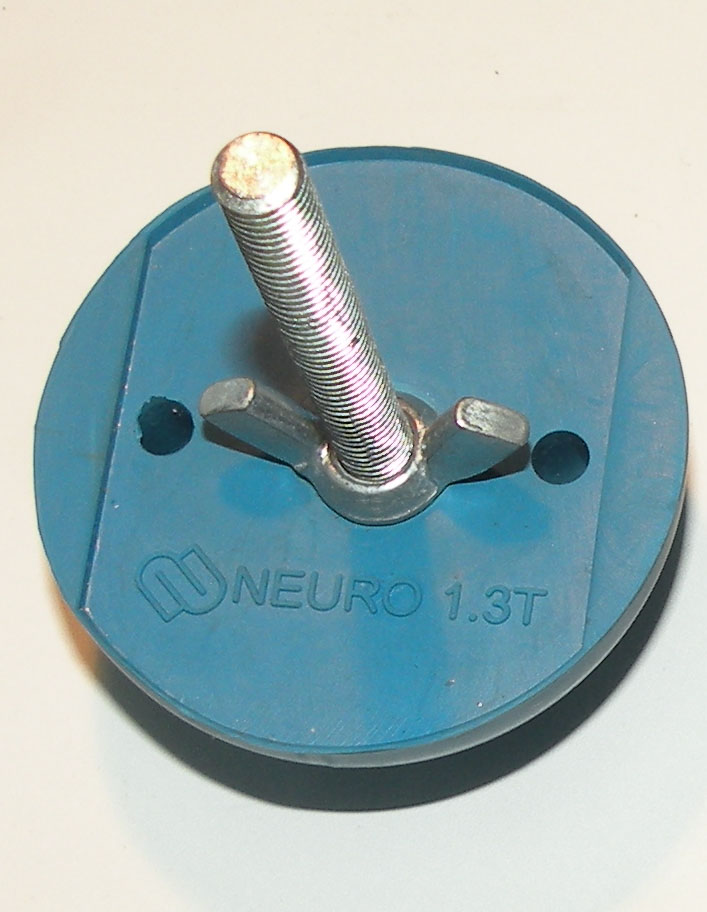

Rapid Lifting System






Tightly match with KK anchor to form recess

Fixing screw to connect the former with mold easily

Raw material: Natural rubber

High and low temperature compatible and long life time

Colour recognize on different size

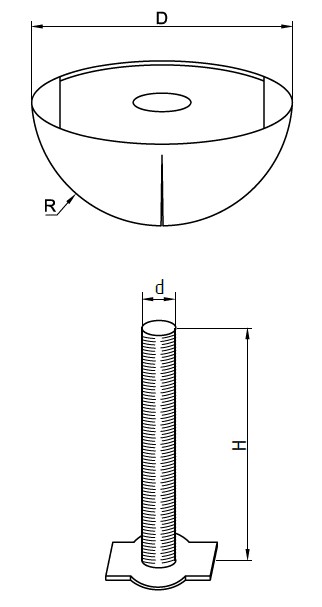

Ref.No.

Size

Dimensions mm

D

R

37013

1.3T

60

30

37025

2.5T

74

37

37050

5T

94

47

37100

10T

118

59





Fixing Screw



Ref.No.

Size

Dimensions mm

H

d

36013

1.3T

70

M8

36025

2.5T

70

M12

36050

5T

70

M12

36100

10T

70

M12





How to order



name + size + surface + quantity
flat plate socket Rd16 YZP*, 5000pcs



YZP: yellow zinc plated
WZP: white-blue zinc plated
316L: stainless steel 316L of socket
304: stainless steel 304 of socket




Download:

Recess Former Round.pdf
