Threading Socket System

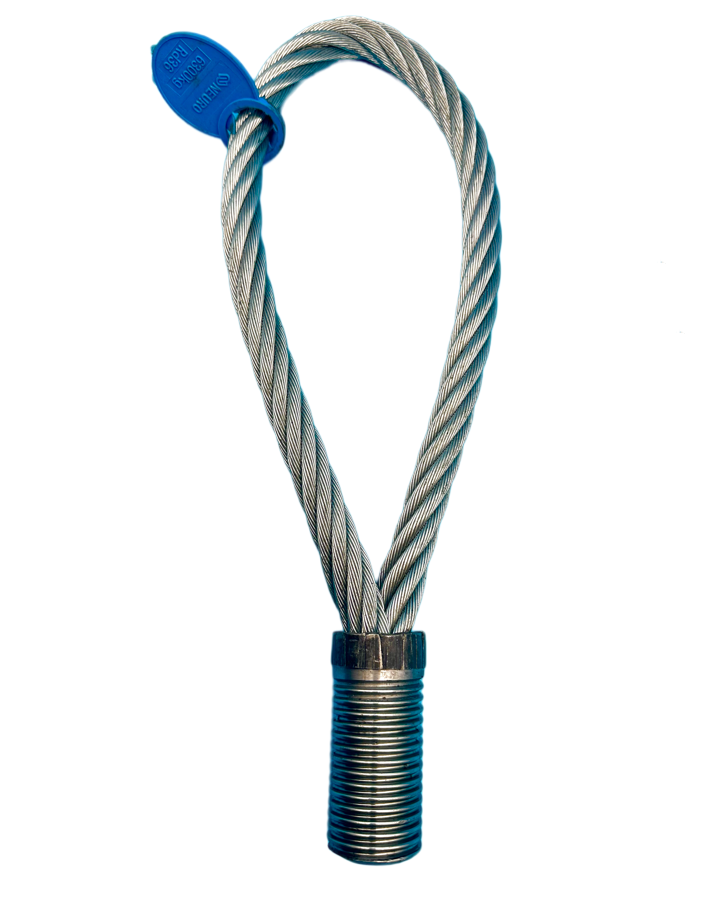

Lifting tool to be connected with all kinds of Neuro Rd thread anchor Wire rope: soft and high strength Round thread: high strength Unique serial no. to track the manufacturing and using 2 times of proof tensile test on every loop before sending



Ref.No.

Size

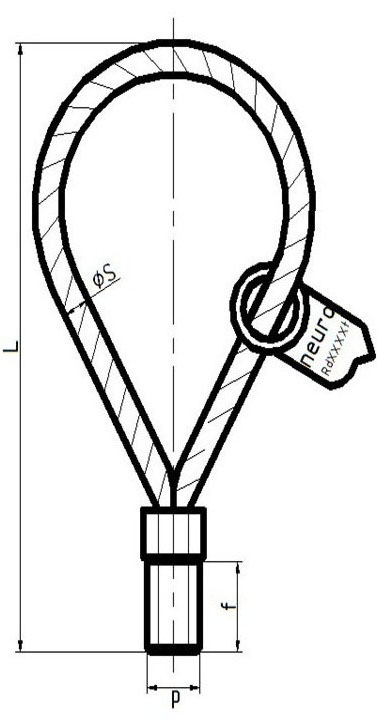

Dimensions mm

SWL        kg

f

s

L

18012155

Rd12

20

6

155

2500

18014155

Rd14

22

7

155

4000

18016155

Rd16

23

8

155

6000

18018190

Rd18

28

9

190

8000

18020215

Rd20

31

10

215

10000

18024255

Rd24

38

12

255

12500

18030300

Rd30

50

16

300

20000

18036340

Rd36

60

18

340

31500

18042420

Rd42

68

20

420

40000

18052550

Rd52

86

26

550

62500


How to order



name + size + surface + quantity
flat plate socket Rd16 YZP*, 5000pcs



YZP: yellow zinc plated
WZP: white-blue zinc plated
316L: stainless steel 316L of socket
304: stainless steel 304 of socket




Download:

Lifting Loop.pdf
