Threading Socket System




Neuro Lifting insert can be used in thin concrete panel, like wall.

A rebar is needed to be through the hole.





- for lifting and transporting purpose

- special material to have high strengthand elongation

- usually zinc plated on the socket and self-finshed on bar

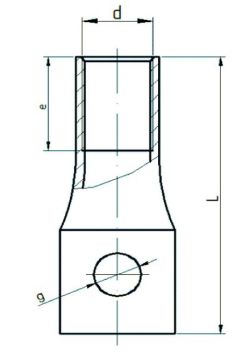

Ref.No.

Size

Dimensions mm

SWL     kg





D

e

L

g



11512060

Rd12

15

22

60

10

500

11514070

Rd14

18

25

70

10

800

11516077

Rd16

21

27

77

13

1200

11520092

Rd20

27

35

92

15

2000

11524105

Rd24

31

43

105

18

2500

11530135

Rd30

39.5

50

135

22.5

4000

How to order



name + size + surface + quantity

Lifting insert Rd16 YZP*, 5000pcs



YZP: yellow zinc plated on socket

WZP: white-blue zinc plated on socket

316L: stainless steel 316L of socket

304: stainless steel 304 of socket








Download:

lifting insert.pdf
