euro combo anchor combining the advantage of spherical head anchor and thread function, can be used in long shape concrete, like column.
- for lifting and transporting purpose
- special material to have high strength and elongation
- usually zinc plated on the socket and self-finshed on bar
|
Ref.No. |
Size |

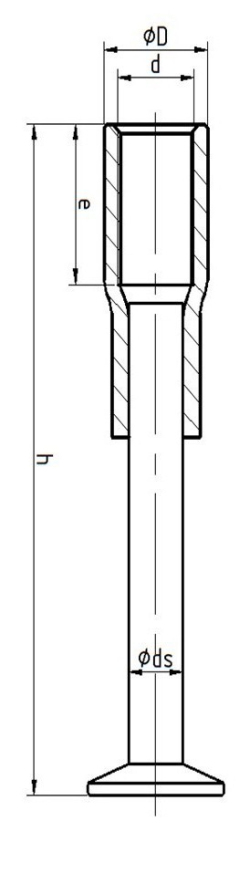

Dimensions mm |
SWL kg |
|
|
|
D |
e |
ds |
h |
|
|
14512100 |
Rd12 |
15 |
22 |
10 |
100 |
500 |
|
14512150 |
Rd12 |
15 |
22 |
10 |
150 |
500 |
|
14514105 |
Rd14 |
18 |
25 |
10 |
105 |
800 |
|
14514155 |
Rd14 |
18 |
25 |
10 |
155 |
800 |
|
14516130 |
Rd16 |
21 |
27 |
14 |
130 |
1200 |
|
14516175 |
Rd16 |
21 |
27 |
14 |
175 |
1200 |
|
14518150 |
Rd18 |
24 |
34 |
14 |
150 |
1600 |
|
14518225 |
Rd18 |
24 |
34 |
14 |
225 |
1600 |
|
14520185 |
Rd20 |
27.2 |
35 |
14 |
185 |
2000 |
|
14520250 |
Rd20 |
27.2 |
35 |
14 |
250 |
2000 |
|
14524200 |
Rd24 |
31 |
43 |
18 |
200 |
2500 |
|
14524275 |
Rd24 | , , ,
31 |
43 |
18 |
275 |
2500 |
|
14530275 |
Rd30 |
39.5 |
56 |
20 |
275 |
4000 |
|
14530350 |
Rd30 |
39.5 |
56 |
20 |
350 |
4000 |
|
14536335 |
Rd36 |
47 |
68 |
24 |
335 |
6300 |
|
14536450 |
Rd36 |
47 |
68 |
24 |
450 |
6300 |
|
14542385 |
Rd42 |
54 |
80 |
28 |
385 |
8000 |
|
14542500 |
Rd42 |
54 |
80 |
28 |
500 |
8000 |
|
14552550 |
Rd52 |
67.2 |
100 |
34 |
550 |
12500 |
|
14552700 |
Rd52 |
67.2 |
100 |
34 |
700 |
12500 |
How to order
name + size + surface + quantity
combo anchor Rd16 YZP*, 5000pcs
YZP: yellow zinc plated on socket
WZP: white-blue zinc plated on socket
316L: stainless steel 316L of socket
304: stainless steel 304 of socket
|
|
|
|
